BSK-M9 Core Board Module

The BSK-M9 core board module uses MediaTek MT8362 CPU, quad-core ARM Cortex-A35 processor, clock frequency up to 1.5GHz, on-board LPDDR3 memory and eMMC, the capacity can be selected according to customer needs.

The BSK-M9 module size is only 44x31mm, but it has a high level of integration. It has its own PMU, charging IC, Wi-Fi and Bluetooth. customers only need very few peripheral components to design their own products, greatly reducing development difficulties and BOM costs.

The BSK-M9 integrates feature-rich interfaces such as LCM, HDMI, camera, touch panel, microphone, speaker, UART, USB, I2C, etc., allowing customers to expand the peripherals they need

BSK-M9 adopts a very convenient easy-to-plug design, which is convenient for installation and commissioning, shortens the new product development cycle, and greatly reduces the maintenance cost of the product in the later stage.

BSK-M9 runs Android 9.0 system, our company can provide customized service and perfect technical support.

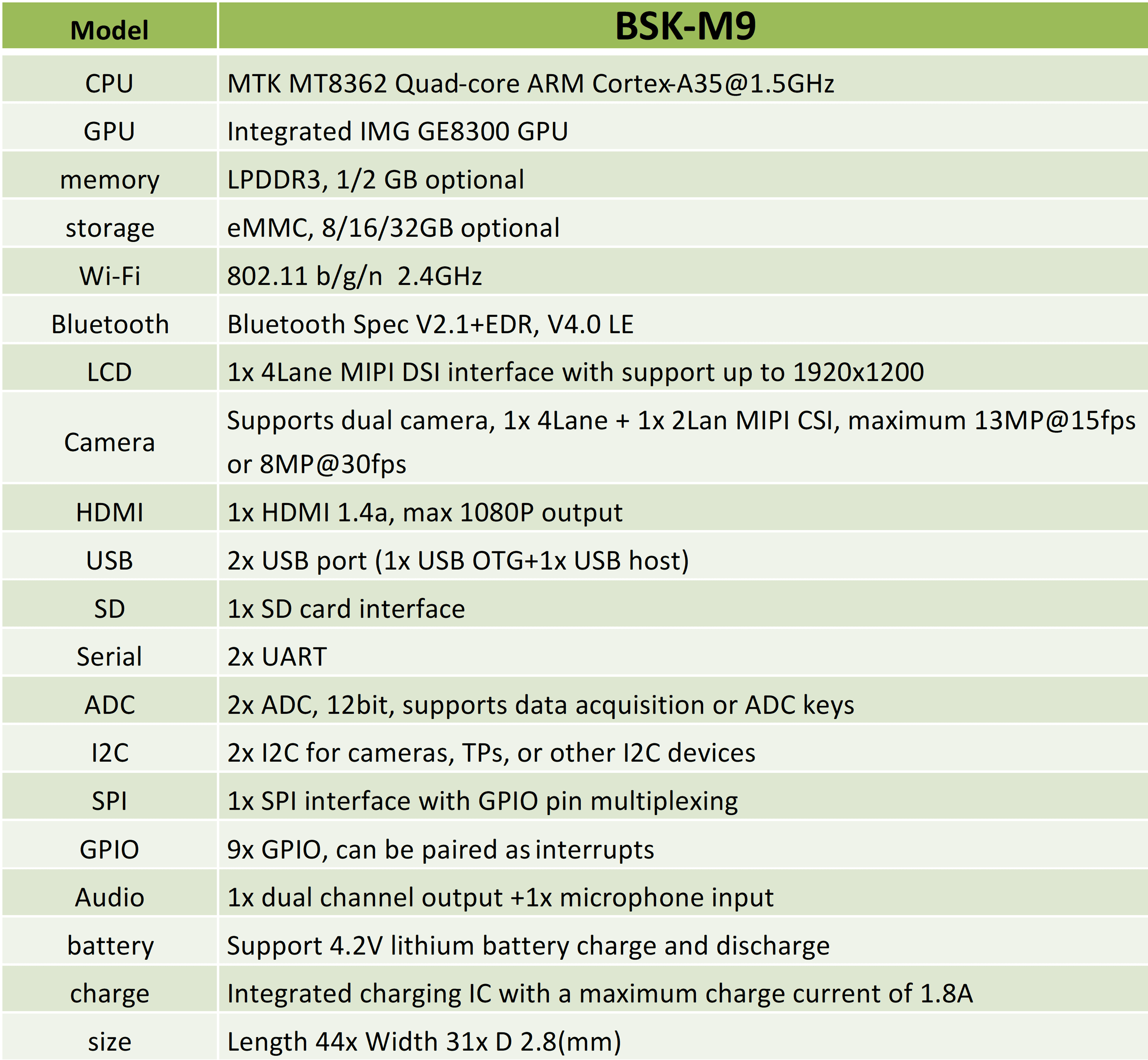

Basic features

Interface definition

1. Main interface

This interface gold finger mechanism is designed according to the M.2-M KEY interface, and the main functions are various input and output power supplies, USB, UART, SD, I2C, Audio and so on. The PIN sequence is as follows:

Front view:

Back view:

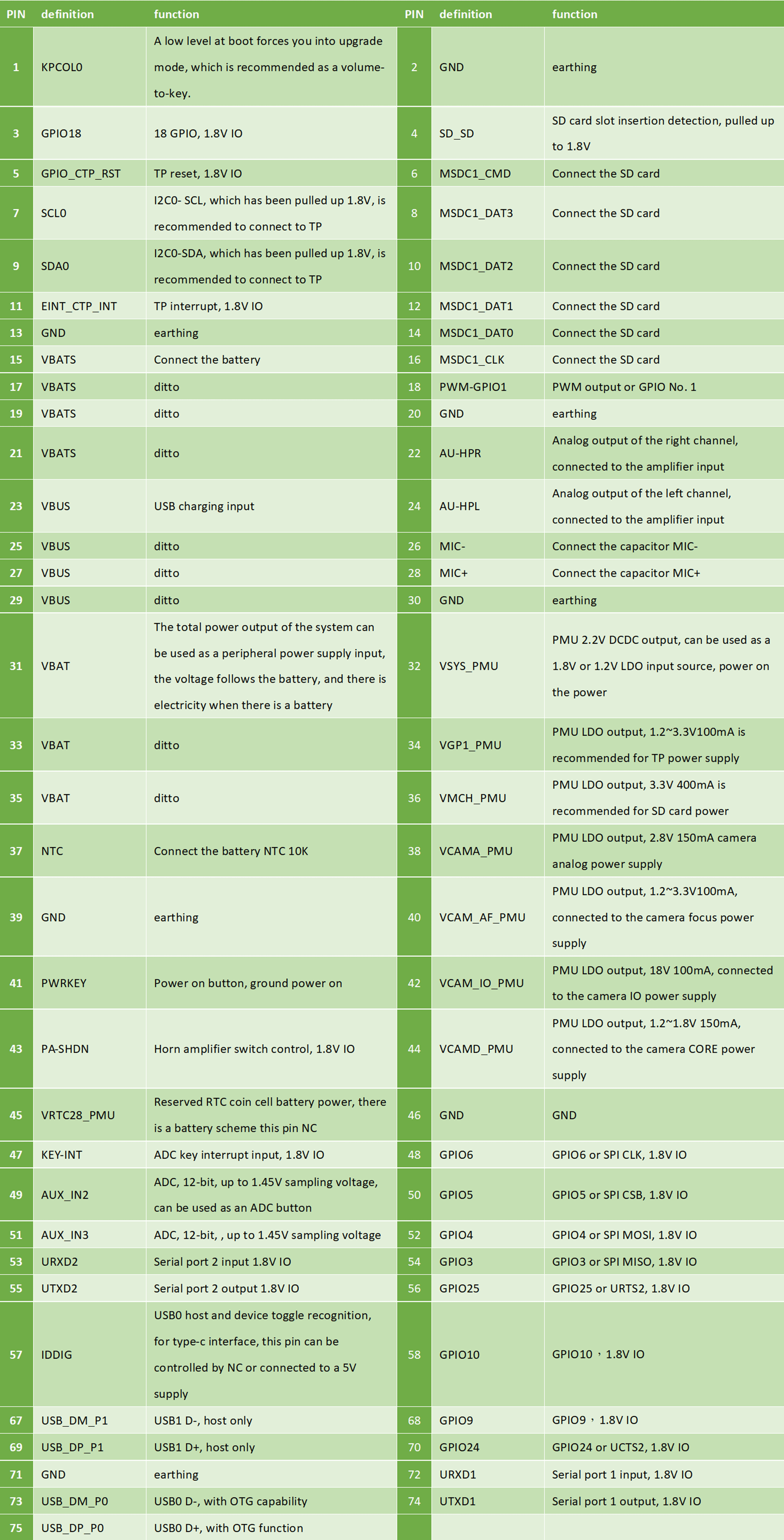

PIN definition:

2. MIPI DSI/CSI interface

This interface adopts 45pin, 0.3mm PIN pitch clamshell connector, model OK-F302-45115, the main function of this interface is MIPI DSI and CSI output, if you do not need to connect the screen and camera, this interface can not be connected. The PIN order is as follows

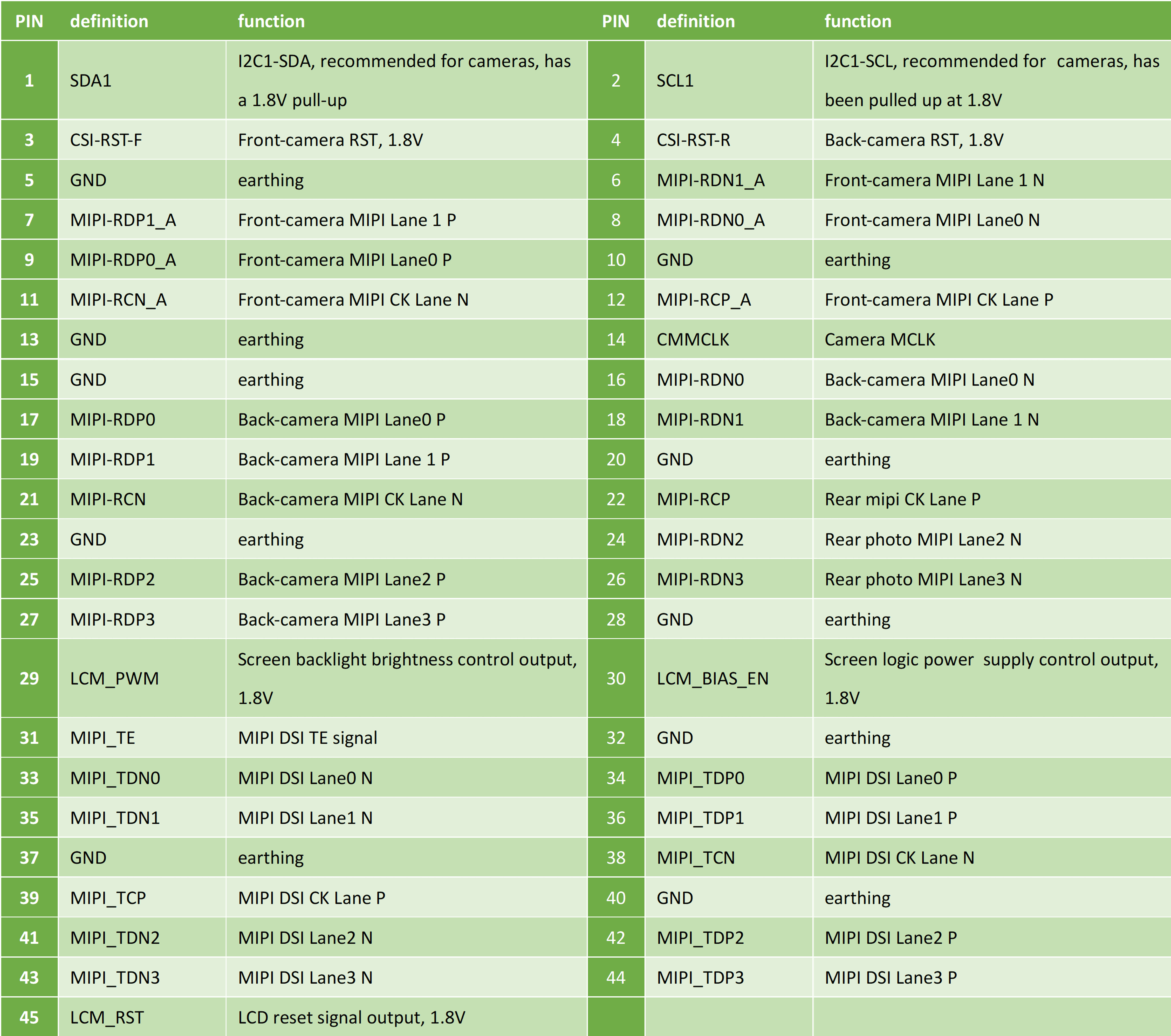

PIN definition:

3. HDMI interface

This interface adopts 21pin, 0.3mm PIN pitch clamshell connector, model OK-F302-21115, the main function of this interface is HDMI output, if this function is not required, this interface can not be connected. The PIN sequence is as follows:

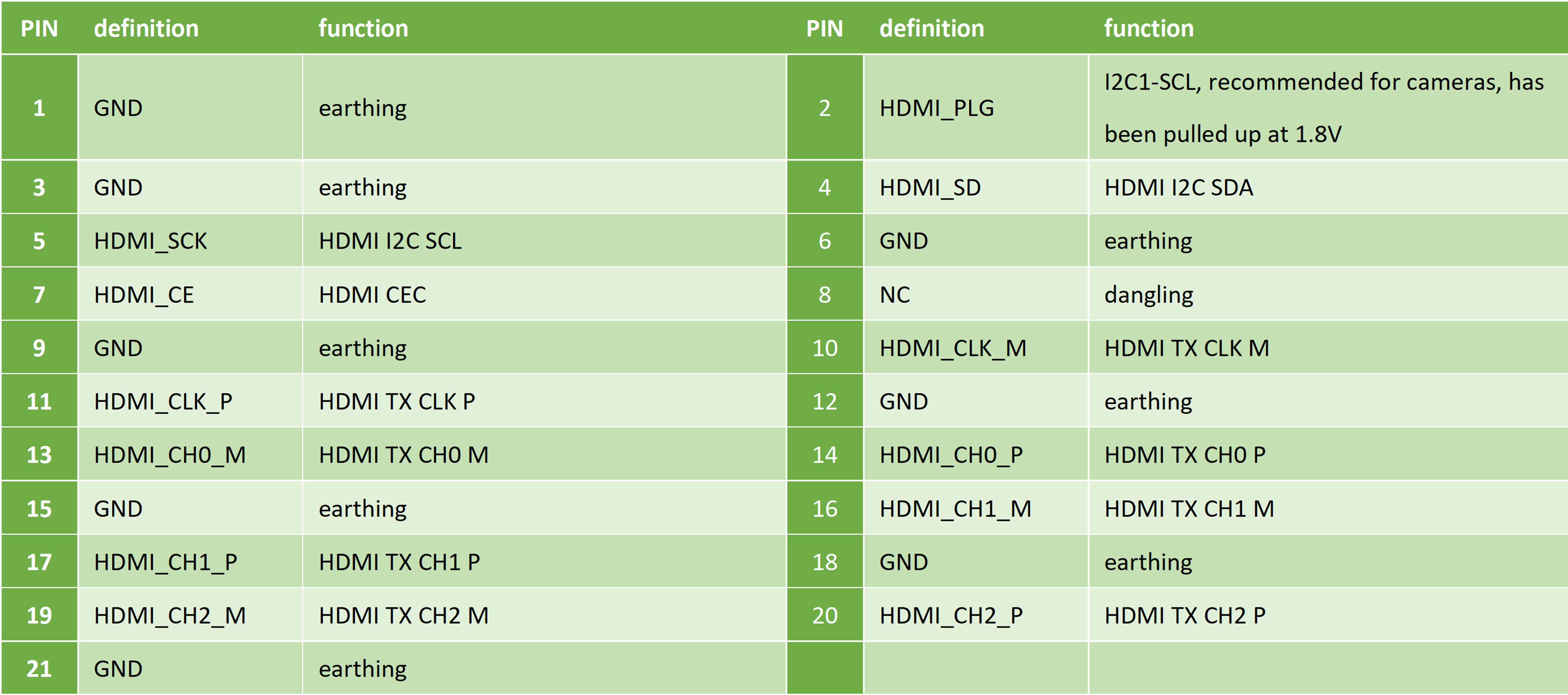

PIN definition:

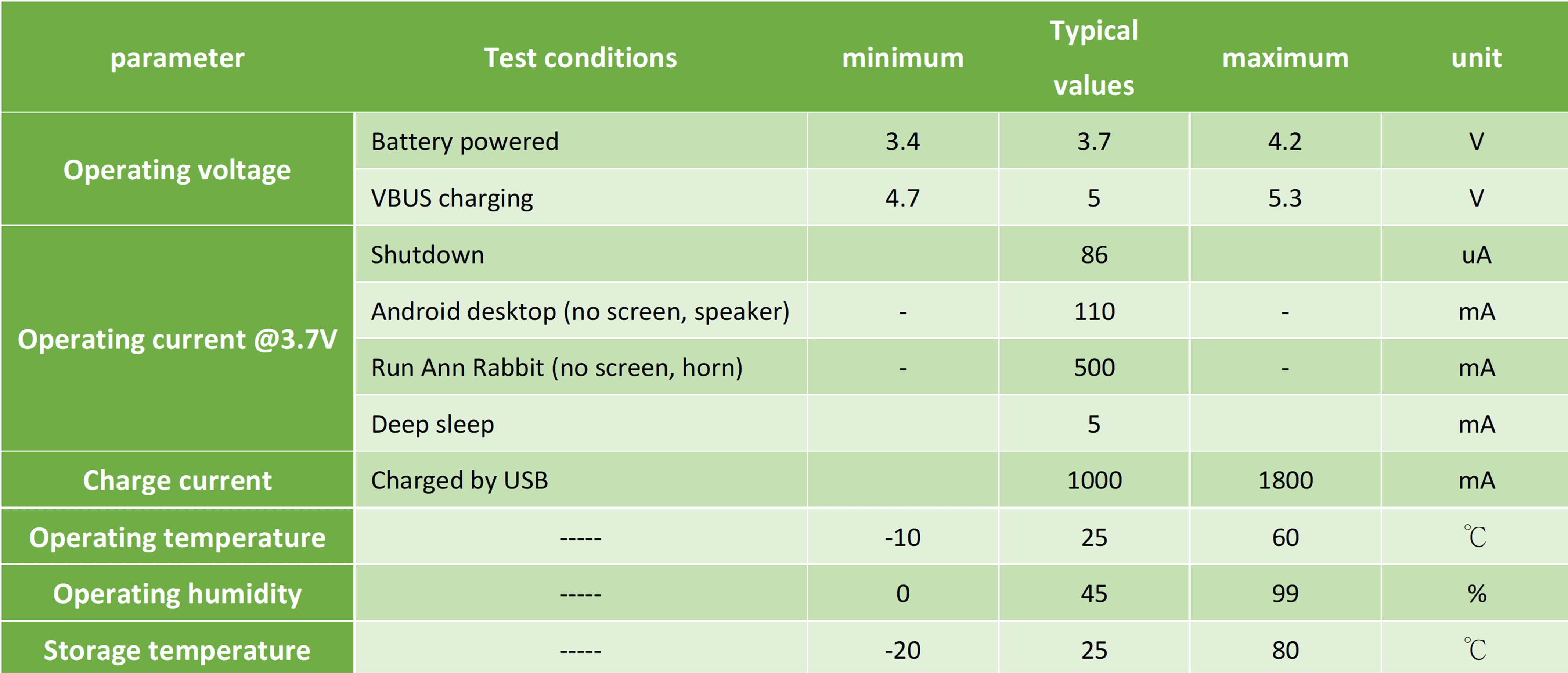

Electrical parameters
