MT8395
●SMARC●
MediaTek
MT8395
●SMARC●

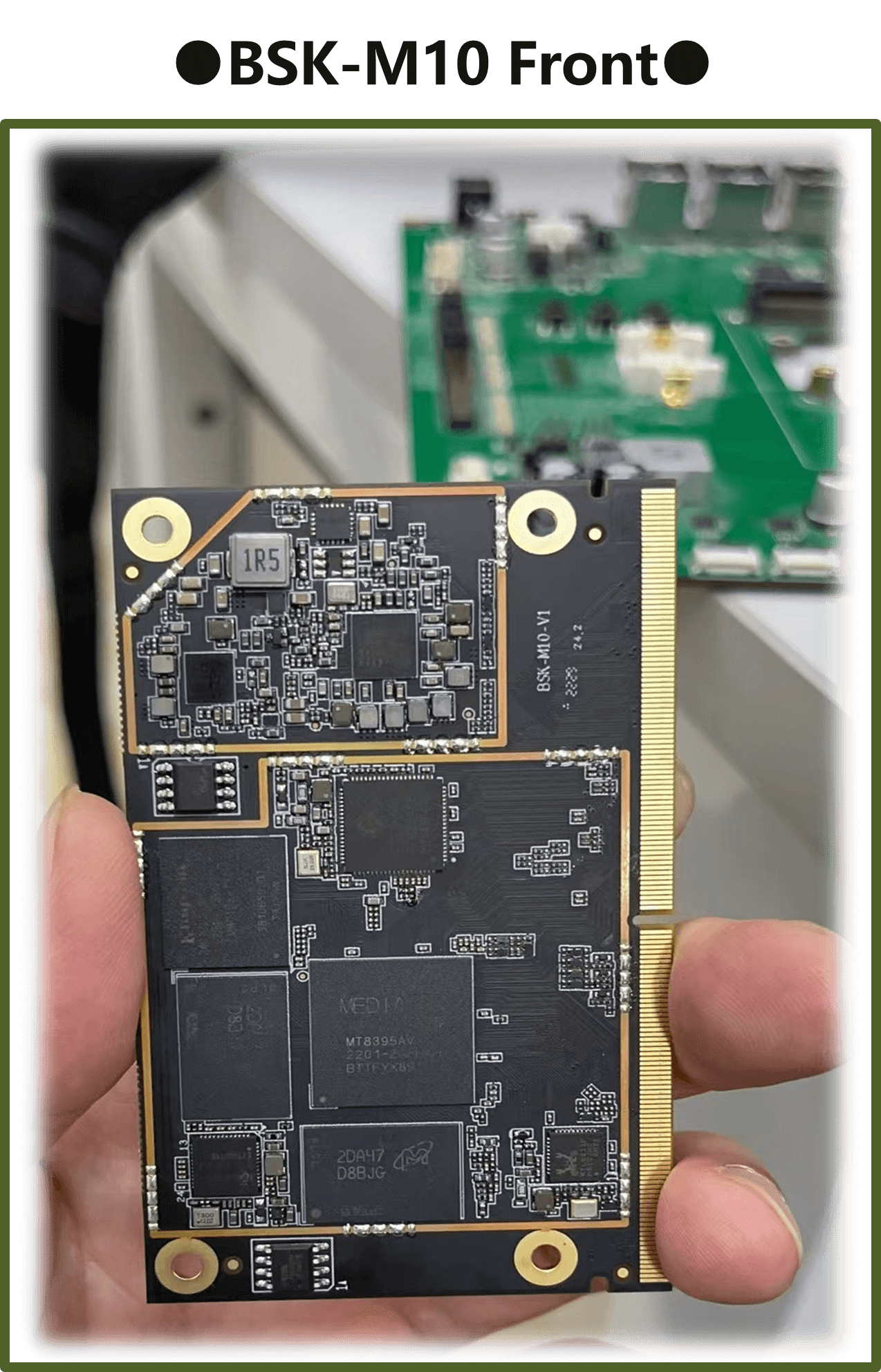

BSK-M10 SMARC Core Board Module



      The BSK-M10 core board module uses MediaTek MT8395 CPU, quad-core ARM Cortex-A78 + quad-core ARM Cortex-A55 processor, clock frequency up to 2.2GHz, on-board LPDDR4X memory and eMMC, the capacity can be selected according to customer needs.

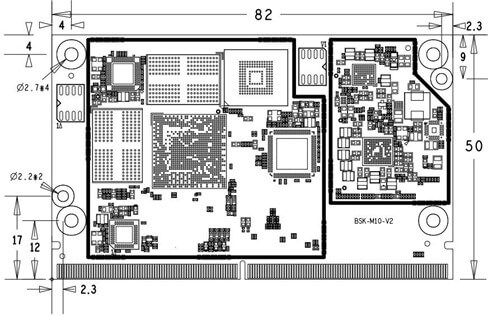

      The BSK-M10 module is designed according to the SMARC 2.1.1 specification and is compatible with most of the functions defined by SMARC. Module size 82X50mm, due to the use of MXM connector and backplane connection, easy to install and debug, shorten the new product development cycle, but also greatly reduce the maintenance cost of the product in the later stage.
      The BSK-M10 integrates feature-rich interfaces such as LCM, HDMI, camera, SATA, UART, USB, I2C, etc., allowing customers to expand the peripherals they need.
      The BSK-M10 can run Android 10, 11, 12 or Yactos system, our company can provide customized service and perfect technical support.

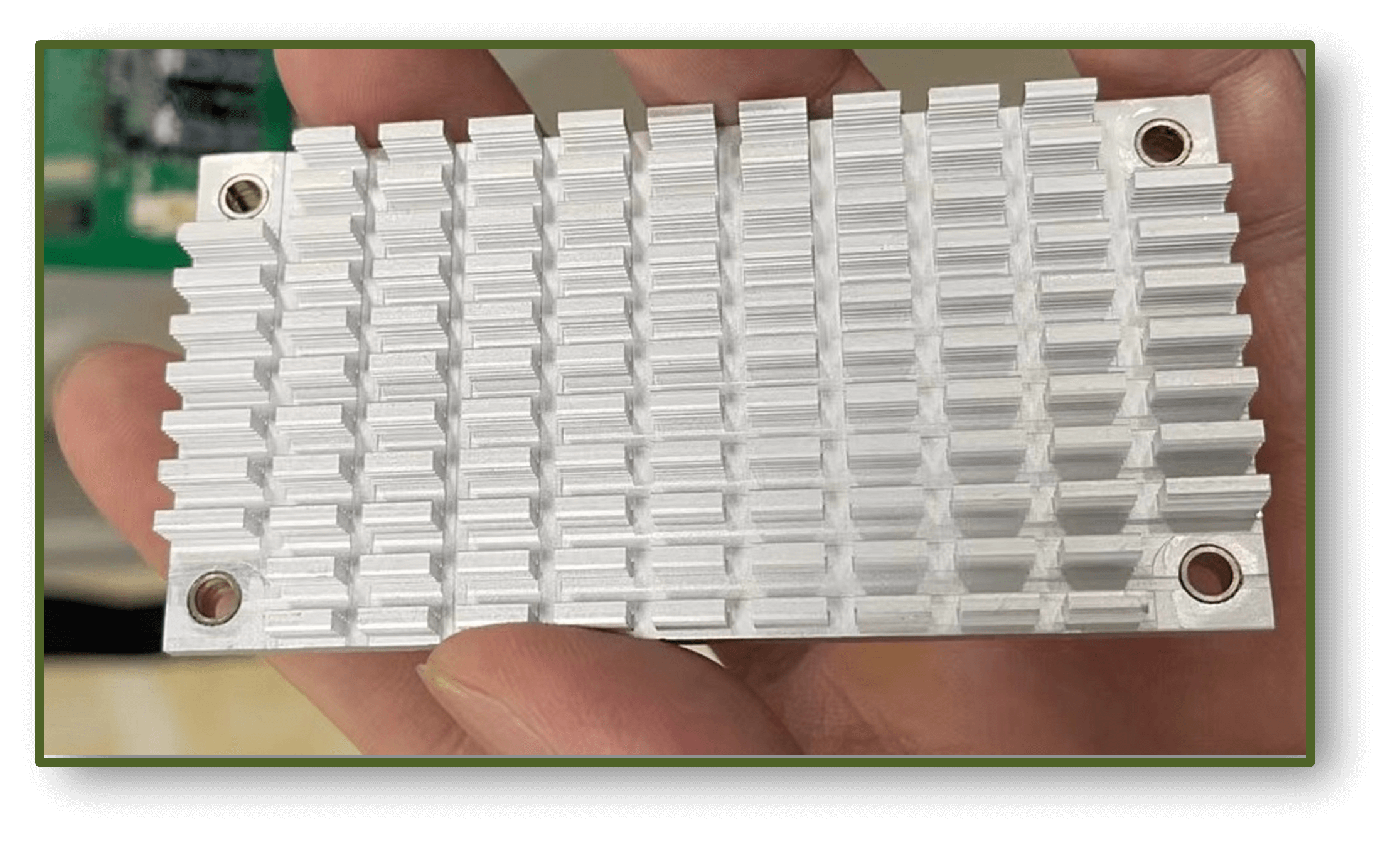

●BSK-M10 can increase ANTUTU score if a heat sink is installed ●

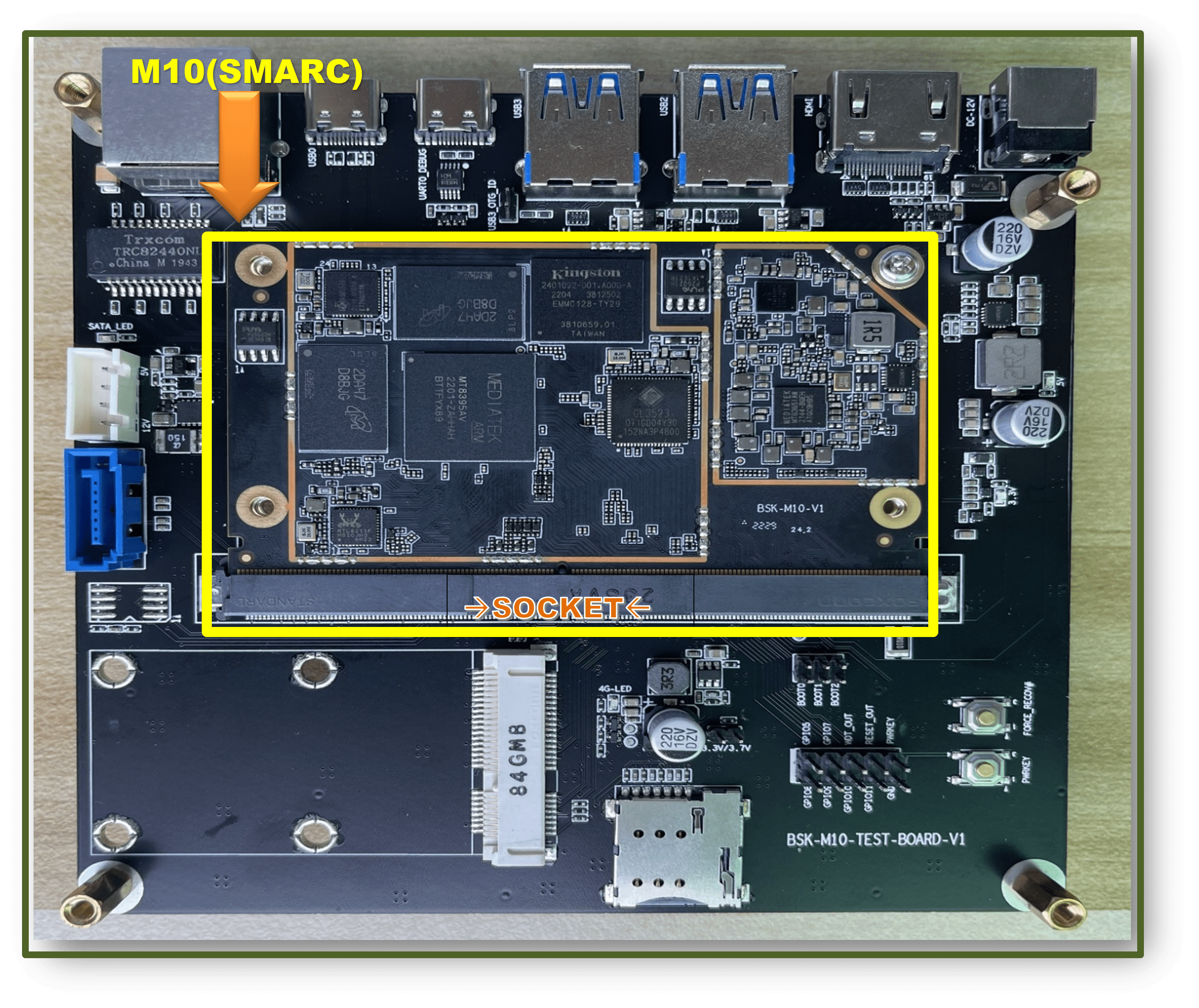

●BSK-M10 (SMARC + Motherboard) Front●

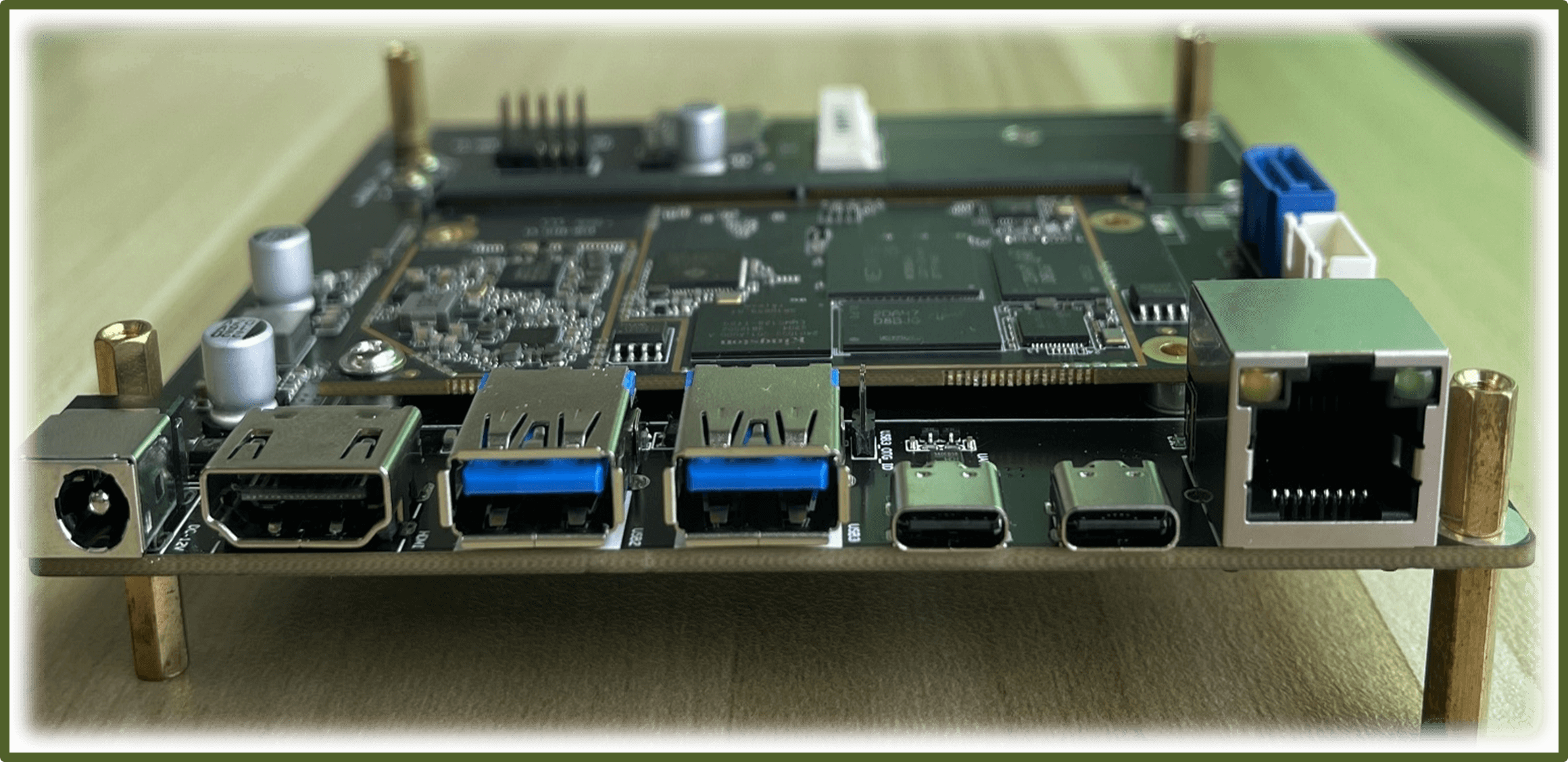

●BSK-M10 (SMARC + Motherboard) Flank ●

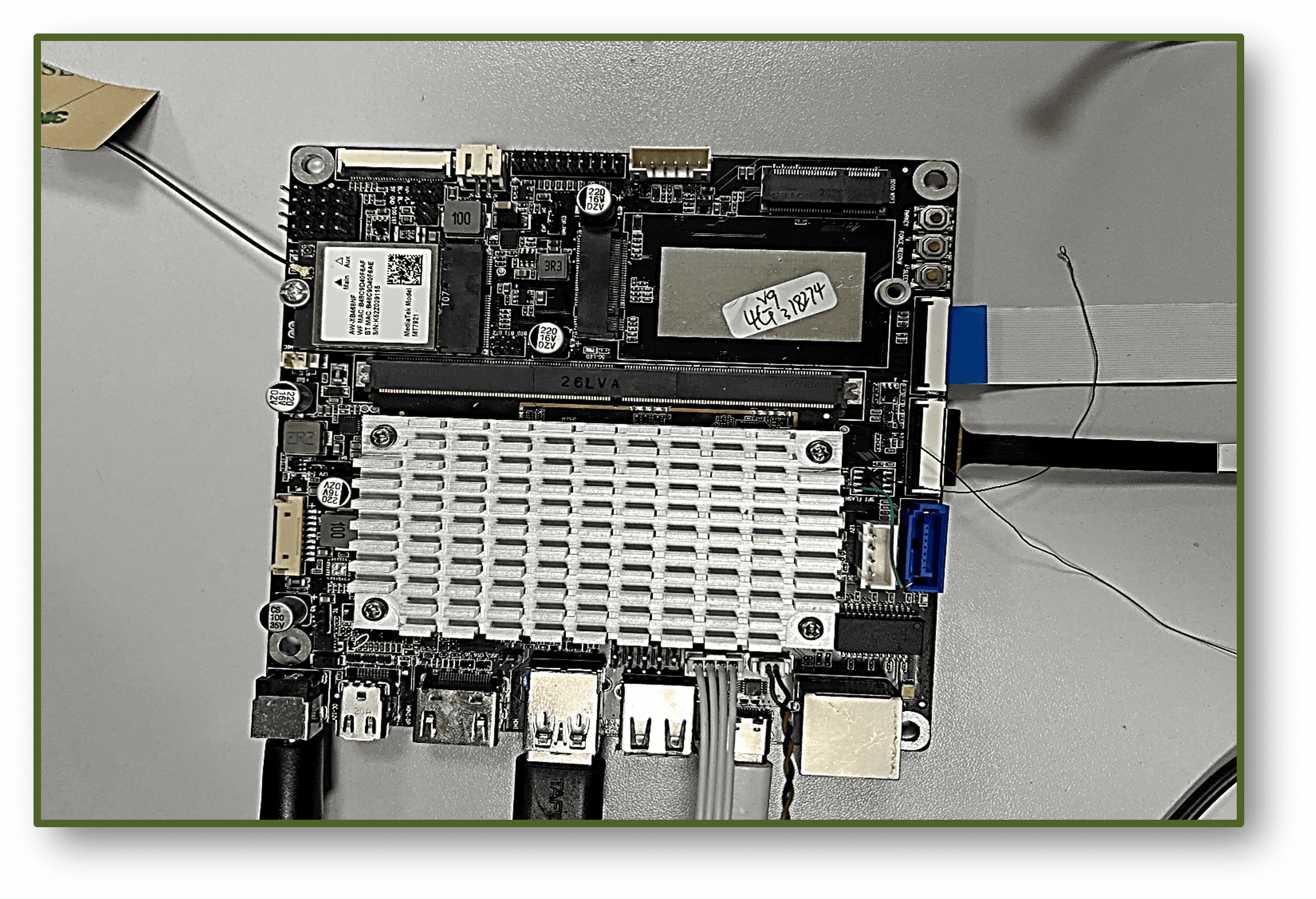

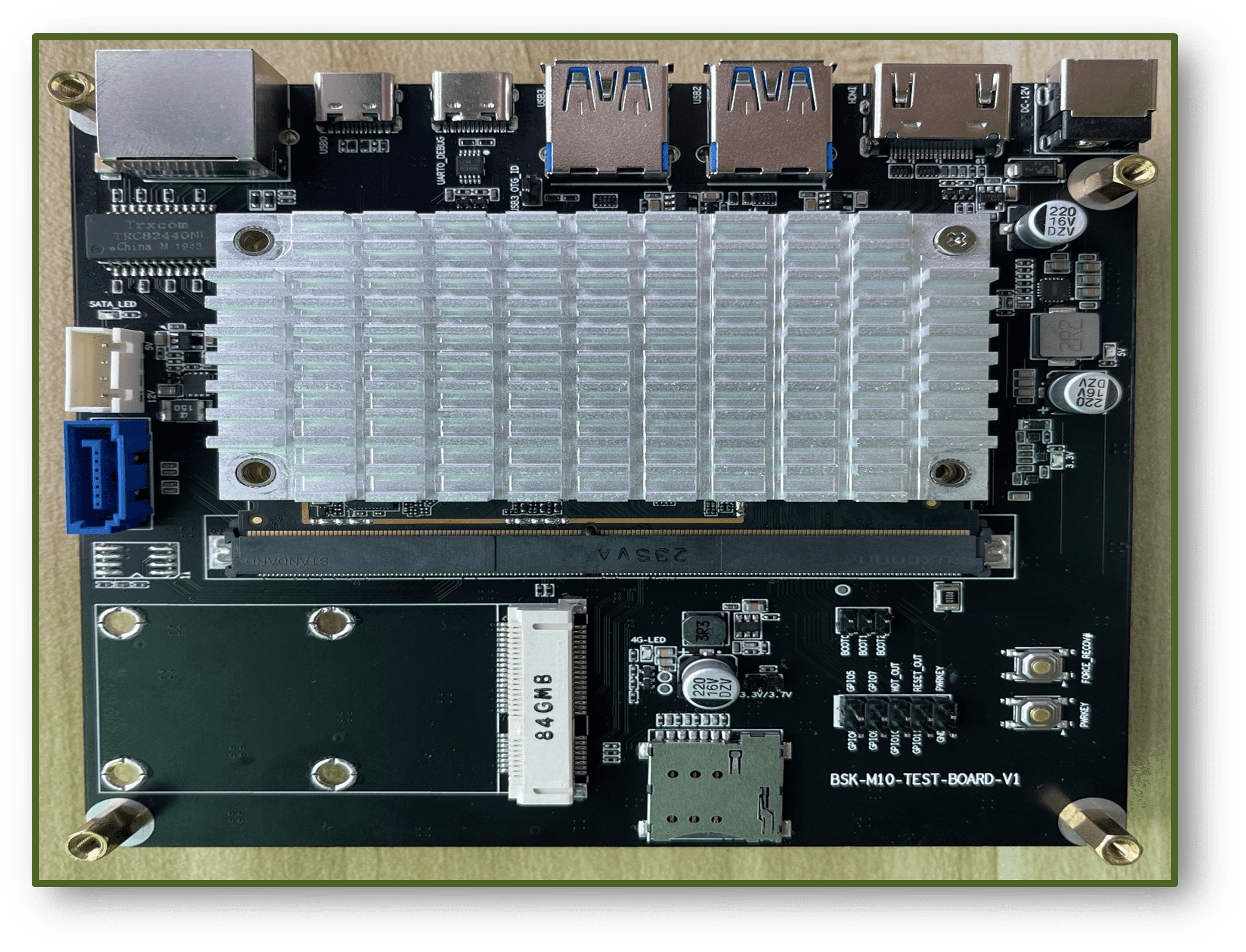

●BSK-M10 (SMARC + Motherboard + heat sink) Front ●

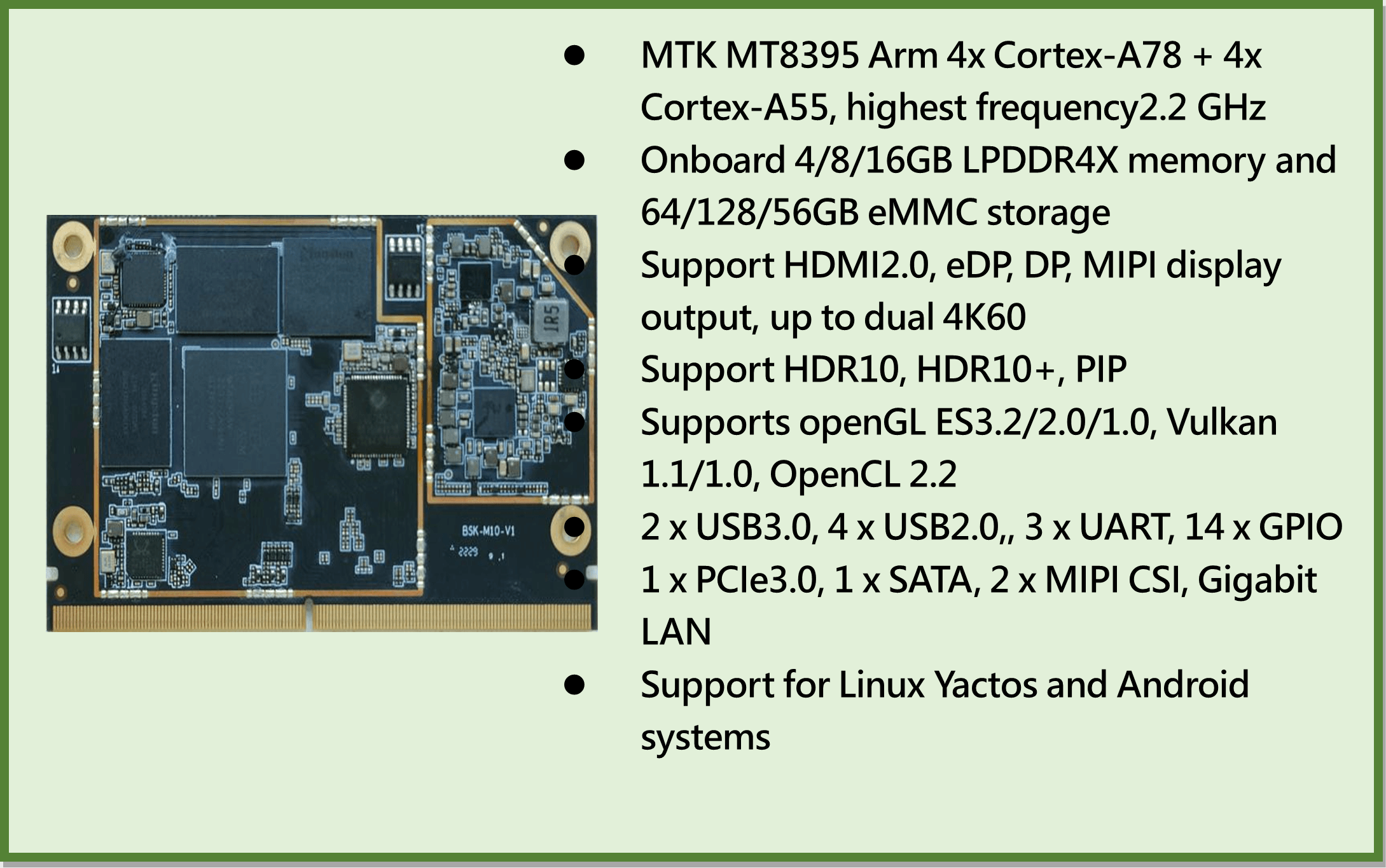

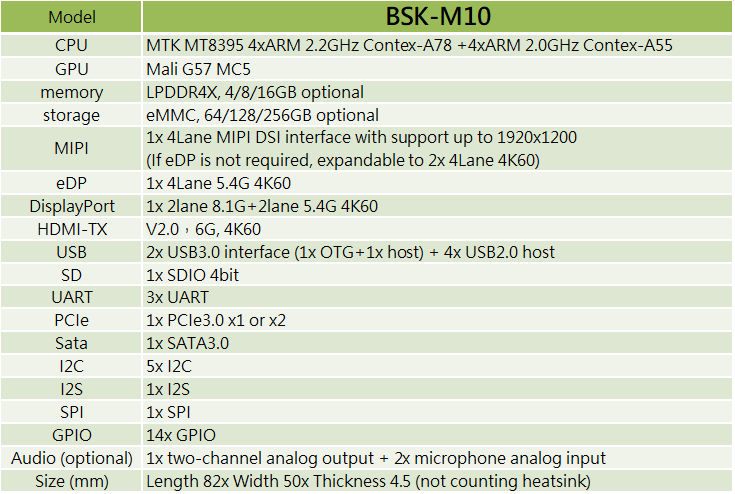

Basic features

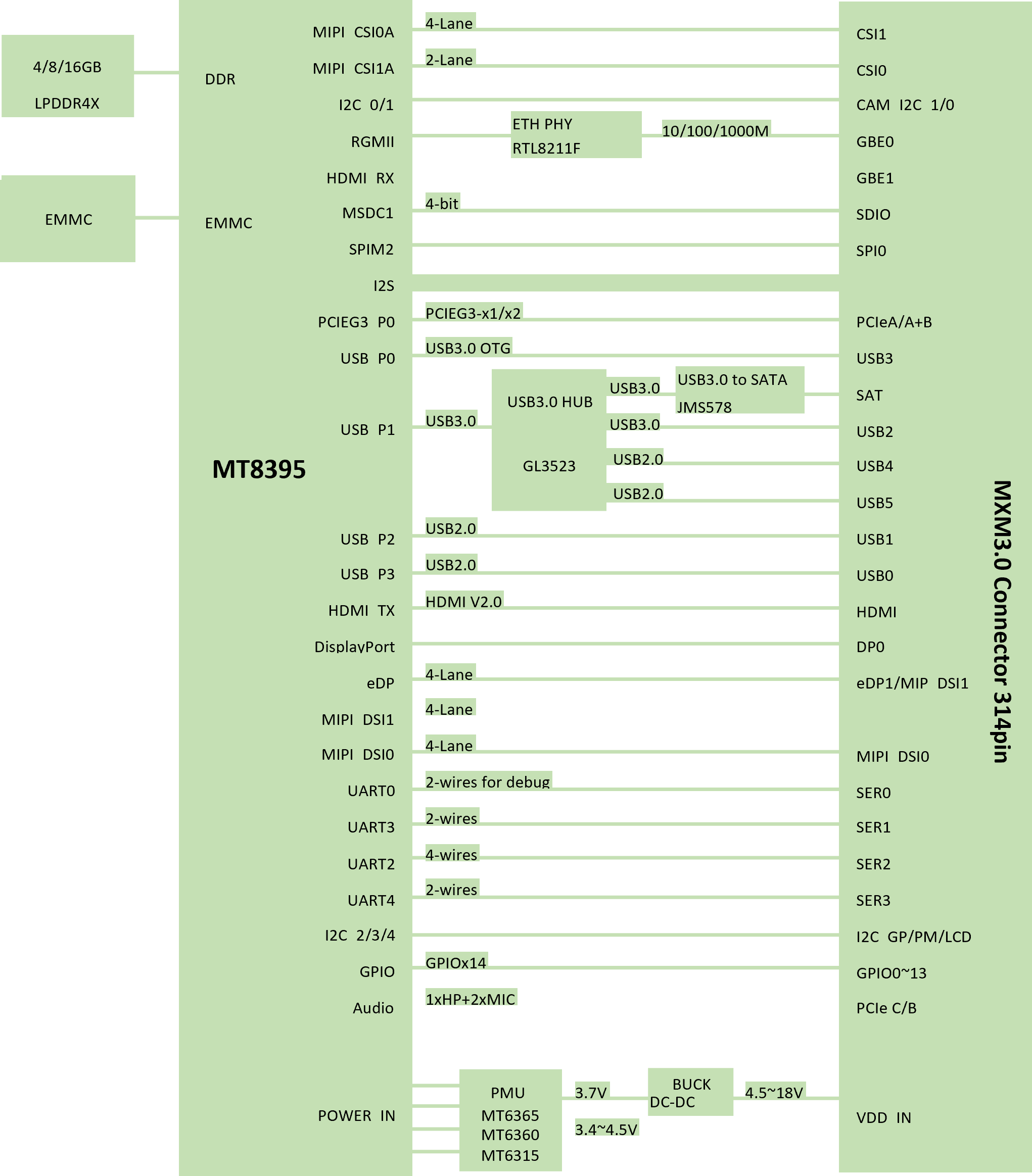

Block diagram

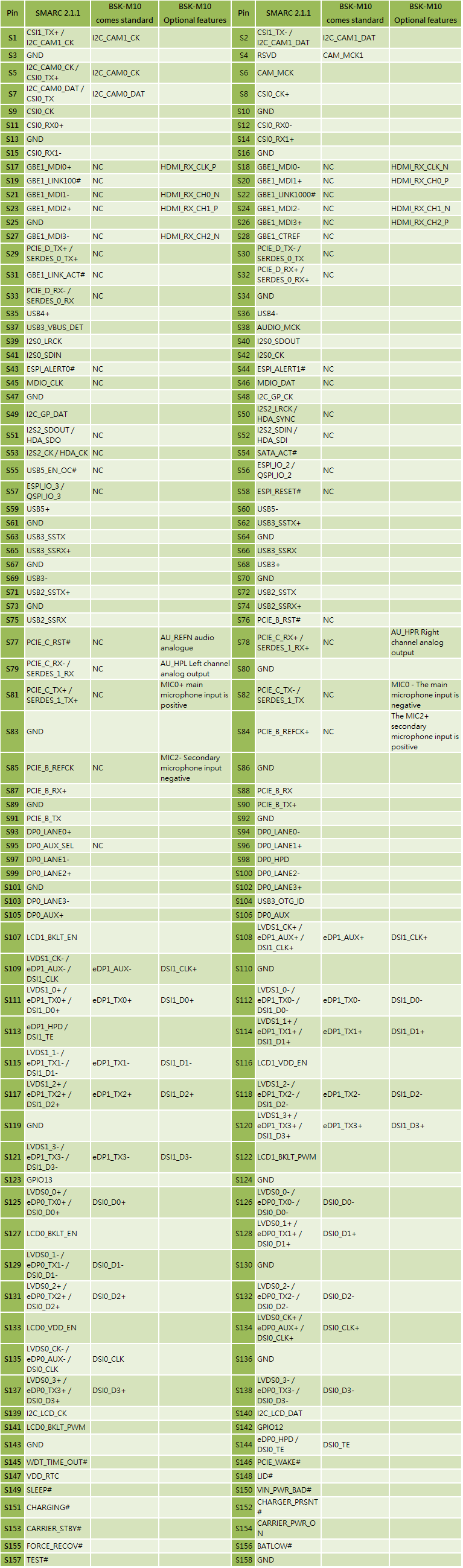

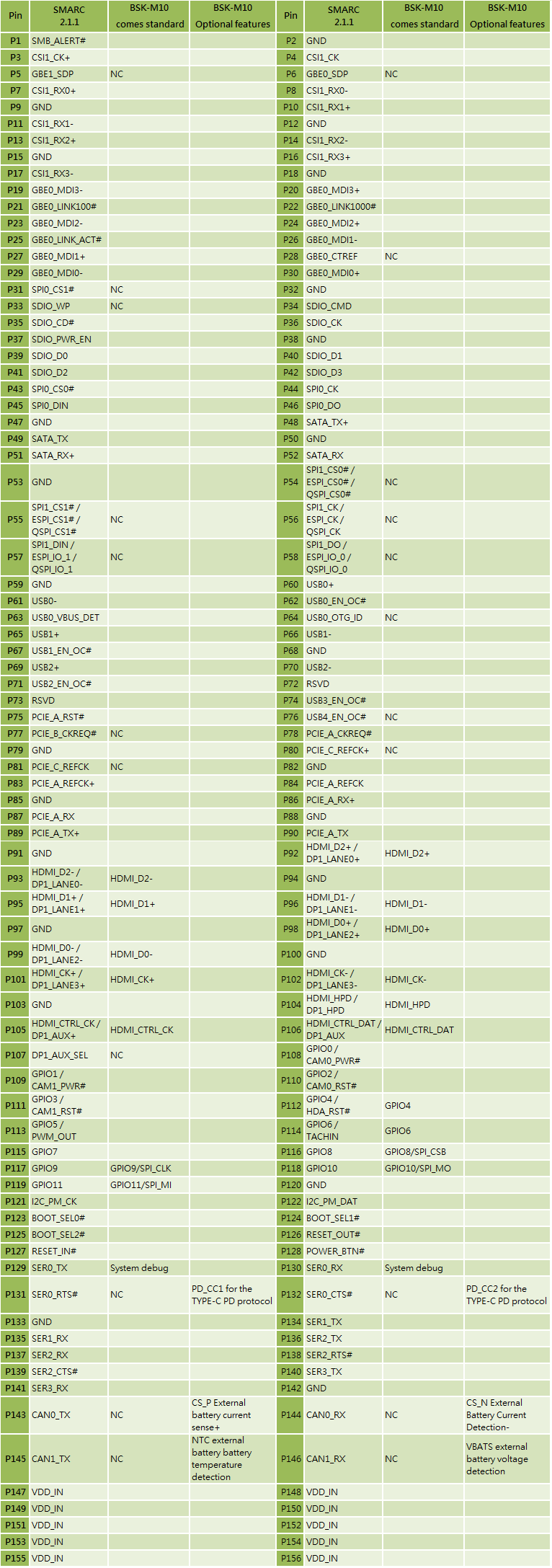

Interface definition



        If not otherwise specified, it is defined in accordance with THE SPARRC 2.1.1 standard.

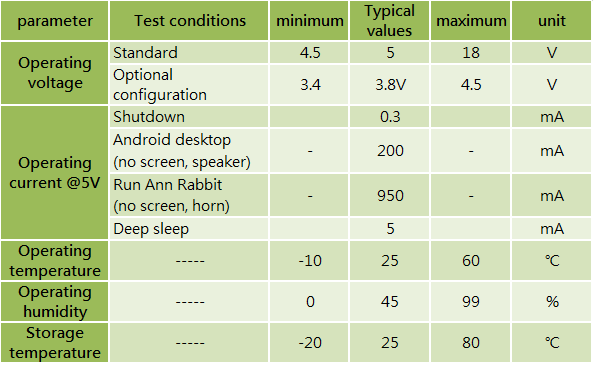

Electrical parameters
